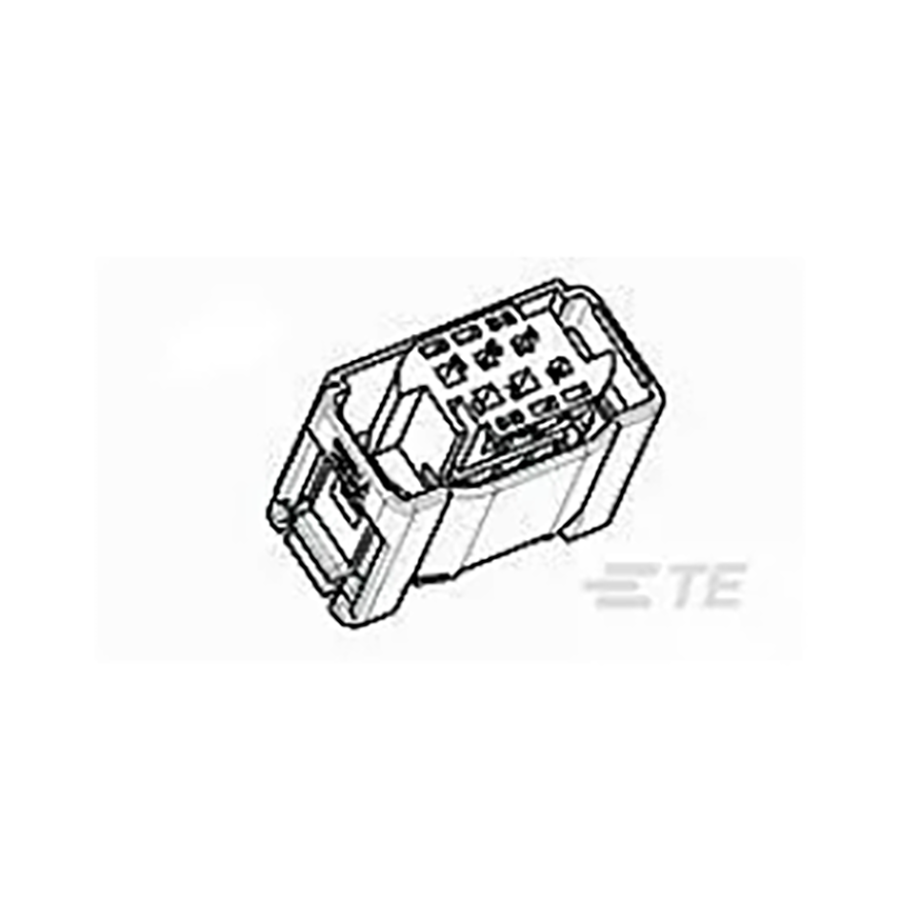

1-967616-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-967616-1
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Housing Number of Positions:6 Pitch:3.9878 mm
| Parameter | Value |
|---|---|
| Length | 24 mm |
| Width | 16.9926 mm |
| Termination | Crimp |
| Max Operating Temperature | 248 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 30.4038 mm |
| Material | Polybutylene |
| Packaging | Bulk |
| Voltage Rating | |
| Depth | 24 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | |
| Pitch | 3.9878 mm |
| Current Rating | |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 6 |
| Body Material | PBT |
| Connector Type | Housing |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 5.8928 mm |
| Housing Material | Polybutylene |
| Circuit Application | Signal |
| Housing Color | Black |
| Mating Post Length | |
| Mating Tab Width | 635 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | No |
| Termination Post Length | |
| Wire Gauge Range | |
| Accessory Type |
Stock: 12
Distributors
pcbx
pcbxUnit Price$0.52214
Ext.Price$0.52214
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52214 | $0.52214 |
| 10 | $0.51168 | $5.11680 |
| 25 | $0.50888 | $12.72200 |
| 50 | $0.50610 | $25.30500 |
| 100 | $0.50333 | $50.33300 |
